ACUV8
Part No Quantity needed Description Type
W1000050 1 UV Lamp LP8DD16 WEE/FB0057TS Standard
W2000050 1 Quarts Sleeve QSL-21x233 Standard
W3200050 2 SS-21 Viton O-ring 21.0x3.0 Standard
ACUV15
Part No Quantity needed Description Type
W1000100 1 UV Lamp LP15DD25 WEE/FB0057TS Standard
W2010125 1 Quarts Sleeve QSL-30x428-430 Standard
W3200200 2 Viton O-ring 29.5x3.0 V70 (SS-30) Standard
ACUV30
Part No Quantity needed Description Type
W1000200 1 UV Lamp LP30DD25 Standard
W2010205 1 Quarts Sleeve QSL-30x890 Standard
W3200200 2 Viton O-ring 29.5x3.0 V70 (SS-30) Standard
ACUV55
Part No Quantity needed Description Type
W1000600 1 UV Lamp LP55DD25 WEE/FB0057TS Standard
W2010205 1 Quarts Sleeve QSL-30x890 Standard
W3200200 2 Viton O-ring 29.5x3.0 V70 (SS-30) Standard
ACUV75
Part No Quantity needed Description Type
W1000800 1 UV Lamp LP75DD25 WEE/FB0057TS Standard
W2010350 1 Quarts Sleeve QSL-30x1197 Standard
W3200200 2 Viton O-ring 29.5x3.0 V70 (SS-30) Standard
ACUV275
Part No Quantity needed Description Type
W1000800 2 UV Lamp LP75DD25 WEE/FB0057TS Standard
W2010350 2 Quarts Sleeve QSL-30x1197 Standard
W3200200 4 Viton O-ring 29.5x3.0 V70 (SS-30) Standard
BW-425-4
Part No Quantity needed Description Type
W1501407 4 UV Lamp MP2525C49L0450 (Choke) (Cross) WEE/FC0081UW Standard
W2100246
4

Quartz Thimble QTH-49 x 445 (2mm thick) Standard
W3200450 4 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 4 EPDM 'O' Ring 59 x 2.0 Standard
W3300360 2 EPDM 'O' Ring 229.3 x 5.7 (8") Standard
W3400650 4 49Dia Thimble Support Seal Standard
W3500025 4 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200025 1 EPDM 'O' Ring 21 x 2.0 V70 Common Wiper
W3400600 4 Revision depleted, please use next revision Common Wiper
W3100160 2 EPDM 'O' Ring 15.0 x 2.5 V70 Auto Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5415020 1 12mm Shaft - Lead Screw Nut Auto Wiper
BW-835-16
Part No Quantity needed Description Type
W1001051 8 UV LAMP MP3535C49L0546 WEE/FC0081UW Standard
W2100284 8 Quartz Thimble QTH-49 x 545 (2mm thick) Standard
W3200450 8 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 8 EPDM 'O' Ring 59 x 2.0 Standard
W3300700 2 EPDM 'O' Ring 379.3 x 5.7 (14") Standard
W3400650 8 49Dia Thimble Support Seal Standard
W3500025 8 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W1001053 8 UV LAMP EB MP3535C49L0546 WEE/FC0081UW Standard (EB)
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200025 1 EPDM 'O' Ring 21 x 2.0 V70 Common Wiper
W3400600 8 Revision depleted, please use next revision Common Wiper
W3100160 2 EPDM 'O' Ring 15.0 x 2.5 V70 Auto Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5415020 1 12mm Shaft - Lead Screw Nut Auto Wiper
BW-1250-20
Part No Quantity needed Description Type
W1501895 12 UV Lamp MP5050C49L0700 (Cross) WEE/FC0081UW Standard
W2100292 12 Quartz Thimble QTH-49 x 700 (2mm thick) Standard
W3200450 12 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 12 EPDM 'O' Ring 59 x 2.0 Standard
W3300900 2 EPDM 'O' Ring 459.3 x 5.7 V70 (18") Standard
W3400650 12 49Dia Thimble Support Seal Standard
W3500025 12 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200025 1 EPDM 'O' Ring 21 x 2.0 V70 Common Wiper
W3400600 12 Revision depleted, please use next revision Common Wiper
W3100160 2 EPDM 'O' Ring 15.0 x 2.5 V70 Auto Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5415020 1 12mm Shaft - Lead Screw Nut Auto Wiper
ECP/ECL-110-4
Part No Quantity needed Description Type
W1501095 1 UV Lamp MP095D/MP10D WEE/FC0081UW Standard
W2019995 1 Quartz Sleeve QSL-36 x 268-270 Standard
W3200300 2 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300270 2 Viton 'O' Ring 110 x 4.0 (block seal) 1 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 1 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
ECP/ECL-113-5
Part No Quantity needed Description Type
W1501200 1 UV Lamp MP13D WEE/FC0081UW Standard
W2020100 1 Quartz Sleeve QSL-36 x 301 Standard
W3200300 2 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300270 2 Viton 'O' Ring 110 x 4.0 (block seal) 1 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 1 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
ECF/ECL-115-6
Part No Quantity needed Description Type
W1501220 1 UV Lamp MP15D WEE/FC0081UW Standard
W2020115 1 Quartz Sleeve QSL-36 x 318-320 Standard
W3200300 2 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300270 2 Viton 'O' Ring 110 x 4.0 (block seal) 1 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 1
Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
ECP/ECL-210-4
Part No Quantity needed Description Type
W1501095 2 UV Lamp MP095D/MP10D WEE/FC0081UW Standard
W2019995 2 Quartz Sleeve QSL-36 x 268-270 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300270 2 Viton 'O' Ring 110 x 4.0 (block seal) 1 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-215-6
Part No Quantity needed Description Type
W1501220 2 UV Lamp MP15D WEE/FC0081UW Standard
W2020115 2 Quartz Sleeve QSL-36 x 318-320 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-220-6
Part No Quantity needed Description Type
W1501300 2 UV Lamp MP20D WEE/FC0081UW Standard
W2020200 2 Quartz Sleeve QSL-36 x 368-370 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-220-8
Part No Quantity needed Description Type
W1501300 2 UV Lamp MP20D WEE/FC0081UW Standard
W2020200 2 Quartz Sleeve QSL-36 x 368-370 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-225-10
Part No Quantity needed Description Type
W1501400 2 UV Lamp MP25D WEE/FC0081UW Standard
W2020290 2 Quartz Sleeve QSL-36 x 418-420 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-225-8
Part No Quantity needed Description Type
W1501400 2 UV Lamp MP25D WEE/FC0081UW Standard
W2020290 2 Quartz Sleeve QSL-36 x 418-420 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-230-10
Part No Quantity needed Description Type

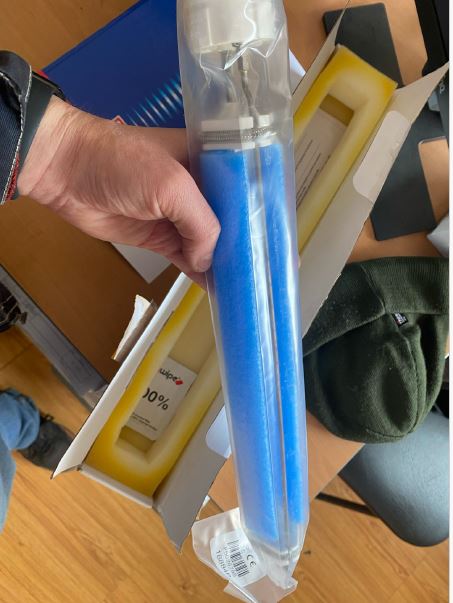

W1501415 2 UV Lamp MP30D WEE/FC0081UW Standard
W2020355 2 Quartz Sleeve QSL-36 x 468-470 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-230-12
Part No Quantity needed Description Type
W1501415 2 UV Lamp MP30D WEE/FC0081UW Standard
W2020355 2 Quartz Sleeve QSL-36 x 468-470 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-233-12
Part No Quantity needed Description Type
W1501430 2 UV Lamp MP33D WEE/FC0081UW Standard
W2020550 2 Quartz Sleeve QSL-36 x 498-500 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-233-14
Part No Quantity needed Description Type
W1501430 2 UV Lamp MP33D WEE/FC0081UW Standard
W2020550 2 Quartz Sleeve QSL-36 x 498-500 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300275 2 Viton 'O' Ring 160 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-425-10
Part No Quantity needed Description Type
W1501400 2 UV Lamp MP25D WEE/FC0081UW Standard
W2020290 2 Quartz Sleeve QSL-36 x 418-420 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300280 2 Viton 'O' Ring 285 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-430-12
Part No Quantity needed Description Type
W1501415 2 UV Lamp MP30D WEE/FC0081UW Standard
W2020355 2 Quartz Sleeve QSL-36 x 468-470 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300280 2 Viton 'O' Ring 285 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
ECF/ECL-433-14
Part No Quantity needed Description Type
W1501430 2 UV Lamp MP30D WEE/FC0081UW Standard
W2020550 2 Quartz Sleeve QSL-36 x 498-500 Standard
W3200300 4 EPDM 'O' Ring 36.09 x 3.53 V70 (SS-36) Standard
W3300280 2 Viton 'O' Ring 285 x 4.0 (block seal) 2 lamp Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400500 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5450035 1 Lead Screw Nut Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
WF-115-3
Part No Quantity needed Description Type
W1502002 1 UV Lamp MP1515C49 WEE/FC0081UW Standard
W2020101 1 Quartz Sleeve (QSL-49 X 270) WF Standard
W3200450 2 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 2 EPDM 'O' Ring 59 x 2.0 Standard
W3500025 1 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W5300403 2 EPDM 'O' Ring 150 x 4 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 * EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200025 1 EPDM 'O' Ring 21 x 2.0 V70 Common Wiper
W3400151 2 14x3 Window Wiper Flap Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W5450034 1 PTFE - Wiper Washer Auto Wiper
W5450037 2 Wiper Bush (PTFE) - WF Auto Wiper
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
WF-115-4
Part No Quantity needed Description Type
W1502002 1 UV Lamp MP1515C49 WEE/FC0081UW Standard
W2020101 1 Quartz Sleeve (QSL-49 X 270) WF Standard
W3200450 2 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 2 EPDM 'O' Ring 59 x 2.0 Standard
W3500025 1 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W5300403 2 EPDM 'O' Ring 150 x 4 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 * EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200025 1 EPDM 'O' Ring 21 x 2.0 V70 Common Wiper
W3400151 2 14x3 Window Wiper Flap Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W5450034 1 PTFE - Wiper Washer Auto Wiper
W5450037 2 Wiper Bush (PTFE) - WF Auto Wiper
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
WF-225-6
Part No Quantity needed Description Type
W1502003 2 UV Lamp MP2525C49 WEE/FC0081UW Standard
W2020102 2 Quartz Sleeve (QSL-49 x 385) WF Standard
W3200450 4 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 4 EPDM 'O' Ring 59 x 2.0 Standard
W3500025 2 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W5300403 2 EPDM 'O' Ring 233 x 4 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 * EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200025 1 EPDM 'O' Ring 21 x 2.0 V70 Common Wiper
W3400151 2 14x3 Window Wiper Flap Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3100160 2 EPDM 'O' Ring 15.0 x 2.5 V70 Auto Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5415020 1 12mm Shaft - Lead Screw Nut Auto Wiper
W5450034 1 PTFE - Wiper Washer Auto Wiper
W5450037 2 Wiper Bush (PTFE) - WF Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
WF-225-8
Part No Quantity needed Description Type
W1502003 2 UV Lamp MP2525C49 WEE/FC0081UW Standard
W2020102 2 Quartz Sleeve (QSL-49 x 385) WF Standard
W3200450 4 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 4 EPDM 'O' Ring 59 x 2.0 Standard
W3500025 2 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W5300403 2 EPDM 'O' Ring 233 x 4 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 * EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200025 1 EPDM 'O' Ring 21 x 2.0 V70 Common Wiper
W3400151 2 14x3 Window Wiper Flap Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3400195 1 EPDM 'O' Ring 8 x 3.0 V70 (Manual Wiper) Manual Wiper
W3100160 2 EPDM 'O' Ring 15.0 x 2.5 V70 Auto Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5415020 1 12mm Shaft - Lead Screw Nut Auto Wiper
W5450034 1 PTFE - Wiper Washer Auto Wiper
W5450037 2 Wiper Bush (PTFE) - WF Auto Wiper
W6636655 1 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
WF-850-20
Part No Quantity needed Description Type
W1501895 8 UV Lamp MP5050C49L0700 (Cross) WEE/FC0081UW Standard
W2100292 8 Quartz Thimble QTH-49 x 700 (2mm thick) Standard
W3200450 8 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 8 EPDM 'O' Ring 59 x 2.0 Standard
W3300935 2 EPDM 'O' Ring 579 x 5.0 WF Flange Seal Standard
W3400650 8 49Dia Thimble Support Seal Standard
W3500025 8 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200025 1 EPDM 'O' Ring 21 x 2.0 V70 Common Wiper
W3400600 8 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5415020 1 12mm Shaft - Lead Screw Nut Auto Wiper
W6636655 * Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 * Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 * Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
PHA-120-4
Part No Quantity needed Description Type
W1000900 1 UV Lamp LP120SS15 WEE/FC0081UW Standard
W2010210 1 Quartz Sleeve QSL-30 x 920 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900310 1 uartz Window QWI-20 x 5 (Flat Disk) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
PHM-13-4
Part No Quantity needed Description Type
W1501200 1 UV Lamp MP13D WEE/FC0081UW Standard
W2020330 1 Quartz Sleeve QSL-36 x 440 Standard
W3200450 2 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 2 EPDM 'O' Ring 59 x 2.0 Standard
W3500025 1 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W2900310 1 Quartz Window QWI-20 x 5 (Flat Disk) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
PHA-200-4
Part No Quantity needed Description Type
W1001100 1 UV Lamp LP200SS19 WEE/FC0081UW Standard
W2010350 1 Quartz Sleeve QSL-30 x 1197 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900310 1 Quartz Window QWI-20 x 5 (Flat Disk) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
PHM-25-4
Part No Quantity needed Description Type
W1501400 1 UV Lamp MP25D WEE/FC0081UW Standard
W2020560 1 Quartz Sleeve QSL-36 x 540 Standard
W3200450 2 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 2 EPDM 'O' Ring 59 x 2.0 Standard
W3500025 1 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W2900310 1 Quartz Window QWI-20 x 5 (Flat Disk) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
PHM-25-6
Part No Quantity needed Description Type
W1501400 1 UV Lamp MP25D WEE/FC0081UW Standard
W2020560 1 Quartz Sleeve QSL-36 x 540 Standard
W3200450 2 EPDM 'O' Ring 49 x 5.0 v70 Standard
W3200480 2 EPDM 'O' Ring 59 x 2.0 1.69 Standard
W3500025 1 PTFE Clamp Ring Gasket (49.5 x 44.5 x 1) Standard
W2900310 1 Quartz Window QWI-20 x 5 (Flat Disk) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm 4.2 Fan Filter
PHA-60-4
Part No Quantity needed Description Type
W1000650 1 UV Lamp LP60SS Standard
W2010130 1 Quartz Sleeve QSL-30 x 500 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Monitor
W2900310 1 Quartz Window QWI-20 x 5 (Flat Disk) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-15-2
Part No Quantity needed Description Type
W1000100 1 UV Lamp LP15DD25 WEE/FB0057TS Standard
W2010125 1 Quartz Sleeve QSL-30 x 428-430 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-15-3
Part No Quantity needed Description Type
W1000100 1 UV Lamp LP15DD25 WEE/FB0057TS Standard
W2010125 1 Quartz Sleeve QSL-30 x 428-430 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-15-4
Part No Quantity needed Description Type
W1000100 1 UV Lamp LP15DD25 WEE/FB0057TS Standard
W2010125 1 Quartz Sleeve QSL-30 x 428-430 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-30-2
Part No Quantity needed Description Type
W1000200 1 UV Lamp LP30DD25 Standard
W2010205 1 Quartz Sleeve QSL-30 x 890 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-30-3
Part No Quantity needed Description Type
W1000200 1 UV Lamp LP30DD25 Standard
W2010205 1 Quartz Sleeve QSL-30 x 890 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-30-4
Part No Quantity needed Description Type
W1000200 1 UV Lamp LP30DD25 Standard
W2010205 1 Quartz Sleeve QSL-30 x 890 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-55-2
Part No Quantity needed Description Type
W1000600 1 UV Lamp LP55DD25 WEE/FB0057TS Standard
W2010205 1 Quartz Sleeve QSL-30 x 890 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-55-3
Part No Quantity needed Description Type
W1000600 1 UV Lamp LP55DD25 WEE/FB0057TS Standard
W2010205 1 Quartz Sleeve QSL-30 x 890 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-55-4
Part No Quantity needed Description Type
W1000600 1 UV Lamp LP55DD25 WEE/FB0057TS Standard
W2010205 1 Quartz Sleeve QSL-30 x 890 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-75-2
Part No Quantity needed Description Type
W1000800 1 UV Lamp LP75DD25 WEE/FB0057TS Standard
W2010350 1 Quartz Sleeve QSL-30 x 1197 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-75-3
Part No Quantity needed Description Type
W1000800 1 UV Lamp LP75DD25 WEE/FB0057TS Standard
W2010350 1 Quartz Sleeve QSL-30 x 1197 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SL-75-4
Part No Quantity needed Description Type
W1000800 1 UV Lamp LP75DD25 WEE/FB0057TS Standard
W2010350 1 Quartz Sleeve QSL-30 x 1197 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 1 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-120-2
Part No Quantity needed Description Type
W1000900 1 UV Lamp LP120SS15 WEE/FC0081UW Standard
W2010210 1 Quartz Sleeve QSL-30 x 920 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-120-3
Part No Quantity needed Description Type
W1000900 1 UV Lamp LP120SS15 WEE/FC0081UW Standard
W2010210 1 Quartz Sleeve QSL-30 x 920 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-120-4
Part No Quantity needed Description Type
W1000900 1 UV Lamp LP120SS15 WEE/FC0081UW Standard
W2010210 1 Quartz Sleeve QSL-30 x 920 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-200-2
Part No Quantity needed Description Type
W1001100 1 UV Lamp LP200SS19 WEE/FC0081UW Standard
W2010350 1 Quartz Sleeve QSL-30 x 1197 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-200-3
Part No Quantity needed Description Type
W1001100 1 UV Lamp LP200SS19 WEE/FC0081UW Standard
W2010350 1 Quartz Sleeve QSL-30 x 1197 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-200-4
Part No Quantity needed Description Type
W1001100 1 UV Lamp LP200SS19 WEE/FC0081UW Standard
W2010350 1 Quartz Sleeve QSL-30 x 1197 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-325-2
Part No Quantity needed Description Type
W1001350 1 UV Lamp TUV 340W XPT HO Standard
W2010480 1 Quartz Sleeve QSL 30 x 1620 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-325-3
Part No Quantity needed Description Type
W1001350 1 UV Lamp TUV 340W XPT HO Standard
W2010480 1 Quartz Sleeve QSL 30 x 1620 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-325-4
Part No Quantity needed Description Type
W1001350 1 UV Lamp TUV 340W XPT HO Standard
W2010480 1 Quartz Sleeve QSL 30 x 1620 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-60-2
Part No Quantity needed Description Type
W1000650 1 UV Lamp LP60SS Standard
W2010130 1 Quartz Sleeve QSL-30 x 500 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-60-3
Part No Quantity needed Description Type
W1000650 1 UV Lamp LP60SS Standard
W2010130 1 Quartz Sleeve QSL-30 x 500 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SLA-60-4
Part No Quantity needed Description Type
W1000650 1 UV Lamp LP60SS Standard
W2010130 1 Quartz Sleeve QSL-30 x 500 Standard
W3200250 2 EPDM 'O' Ring 30 x 5.0 V70 Standard
W3200370 2 EPDM 'O' Ring 40 x 2.0 V70 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
SP-13-4
Part No Quantity needed Description Type
W1501205 1 UV Lamp MP13S49 WEE/FC0081UW Standard
W2100240 1 Quartz Thimble QTH-49 x 400 Standard
W3400170 2 EPDM 'O' Ring 129.5 x 3 (4") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-25-4
Part No Quantity needed Description Type
W1501405 1 UV Lamp MP25S49 WEE/FC0081UW Standard
W2100270 1 Quartz Thimble QTH-49 x 500 Standard
W3400170 2 EPDM 'O' Ring 129.5 x 3 (4") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-73-4
Part No Quantity needed Description Type
W1501755 1 UV Lamp MP73S49 WEE/FC0081UW Standard
W2100850 1 Quartz Thimble QTH-49 x 1100 (2mm thick) Standard
W3400170 2 EPDM 'O' Ring 129.5 x 3 (4") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-25-6
Part No Quantity needed Description Type
W1501405 1 UV Lamp MP25S49 WEE/FC0081UW Standard
W2100270 1 Quartz Thimble QTH-49 x 500 Standard
W3400185 2 EPDM 'O' Ring 179.5 x 3 (6") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-73-6
Part No Quantity needed Description Type
W1501755 1 UV Lamp MP73S49 WEE/FC0081UW Standard
W2100270 1 Quartz Thimble QTH-49 x 1100 (2mm thick) Standard
W3400185 2 EPDM 'O' Ring 179.5 x 3 (6") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-25-8
Part No Quantity needed Description Type
W1501405 1 UV Lamp MP25S49 WEE/FC0081UW Standard
W2100290 1 Quartz Thimble QTH-49 x 600 Standard
W3300360 2 EPDM 'O' Ring 229.3 x 5.7 (8") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-50-8
Part No Quantity needed Description Type
W1501902 1 UV Lamp MP50S49 WEE/FC0081UW Standard
W2100295 1 Quartz Thimble QTH-49 x 800 Standard
W3300360 2 EPDM 'O' Ring 229.3 x 5.7 (8") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-73-8
Part No Quantity needed Description Type
W1501755 1 UV Lamp MP73S49 WEE/FC0081UW Standard
W2100550 1 Quartz Thimble QTH-49 x 1000 Standard
W3300360 2 EPDM 'O' Ring 229.3 x 5.7 (8") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-50-10
Part No Quantity needed Description Type
W1501902 1 UV Lamp MP50S49 WEE/FC0081UW Standard
W2100295 1 Quartz Thimble QTH-49 x 800 Standard
W3300450 2 EPDM 'O' Ring 279.3 x 5.7 (10") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-73-10
Part No Quantity needed Description Type
W1501755 1 UV Lamp MP73S49 WEE/FC0081UW Standard
W2100550 1 Quartz Thimble QTH-49 x 1000 Standard
W3300450 2 EPDM 'O' Ring 279.3 x 5.7 (10") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SP-73-12
Part No Quantity needed Description Type
W1501755 1 UV Lamp MP73S49 WEE/FC0081UW Standard
W2100550 1 Quartz Thimble QTH-49 x 1000 Standard
W3300450 2 EPDM 'O' Ring 279.3 x 5.7 (10") Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Standard
W3200400 1 SS-49 EPDM 'O' Ring 49.21 x 3.53 Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W3200100 1 EPDM 'O' Ring 24.99 x 3.53 (SS-24) Common Wiper
W3400600 2 Revision depleted, please use next revision Common Wiper
W3500100 3 Nitrile Quad Ring 7.52 x 3.53 Auto Wiper
W3500105 1 PTFE Backing Ring 13.9OD x 8.1ID x 0.5Thk Auto Wiper
W5410016 1 SP Wiper Carriage Lead Screw Nut Auto Wiper
W6636655 2 Mesh Fan Filter - Large 275mm x 275mm Fan Filter
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
W6636661 2 Mesh Fan Filter - Medium 210mm x 210mm Fan Filter
SSL-13-4
Part No Quantity needed Description Type
W1501200 1 UV Lamp MP13D WEE/FC0081UW Standard
W2060290 1 Quartz Sleeve QSL-74 x 500 (3mm thick) Standard
W3200495 2 EPDM 'O' Ring 74 x 5.0 Standard
W3200497 2 EPDM 'O' Ring 84 x 2.0 Standard
W3300160 2 Viton 'O' Ring 124.5 x 3 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
SSL-25-4
Part No Quantity needed Description Type
W1501200 1 UV Lamp MP13D WEE/FC0081UW Standard
W2060290 1 Quartz Sleeve QSL-74 x 500 (3mm thick) Standard
W3200495 2 EPDM 'O' Ring 74 x 5.0 Standard
W3200497 2 EPDM 'O' Ring 84 x 2.0 Standard
W3300160 2 Viton 'O' Ring 124.5 x 3 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
SSL-50-4
Part No Quantity needed Description Description
W1501900 1 UV Lamp MP50D WEE/FC0081UW Standard
W2060300 1 Quartz Sleeve QSL-74 x 875 (3mm thick) Standard
W3200495 2 EPDM 'O' Ring 84 x 2.0 Standard
W3200497 2 EPDM 'O' Ring 84 x 2.0 Standard
W3300160 2 Viton 'O' Ring 124.5 x 3 Standard
W2900320 1 Quartz Window QWI 20 x 15 x 5 (Top Hat) Monitor
W3400157 2 EPDM 'O' Ring 13 x 3.5 Window Seal (QWS-20) Monitor
W6636660 2 Mesh Fan Filter - Small 115mm x 115mm Fan Filter
