Fuller Ultraviolet and Ozone Lamps

Lamp Number Base To Base Length Ozone Generation Bulb/ Base Type
Cold Cathode Type
782L10 14.750" Negligible T5 Single Pin
782L20 24.750" Negligible T5 Single Pin
782L30 34.750" Negligible T5Single Pin
Slimline Type
S12T6L 9.875" Negligible T6 Single Pin
S12T6VH 9.875" Very High T6 Single Pin
G10T51/2L 14.750" Negligible T5 Single Pin
G10T51/2VH 14.750" Very High T5 Single Pin
S24T6L 21.8751" Negligible T6 Single Pin
S24T6VH 21.875" Very High T6 Single Pin
G30T6L 27.875" Negligible T6 Single Pin
G36T6L 33.785" Negligible T6 Single Pin
G36T6VH 33.875" Very High T6 Single Pin
G36T6L/4 33.875" Negligible T6 4 Pin
G37T6VH 34.875" Very High T6 Single Pin
G48T6L 45.875" Negligible T6 Single Pin
G48T6VH 45.875" Very High T6 Single Pin
G64T5L 61.875" Negligible T5 Single Pin
G64T5VH 61.875" Very High T5 Single Pin
Hot Cathode Type
G4511 2.125" Negligible S11 Int. Screw
G4T5 5.125" Negligible T5 Min. Bipin
G6T5 8.125" Negligible T5 Min. Bipin
G8T5 11.125" Negligible T5 Min. Bipin
G15T8 17.125" Negligible T8 Med. Bipin
G25T8 1 7.125" Negligible T8 Med. Bipin
G30T8 35.125" Negligible T8 Med. Bipin
GPH105T5VH 4.500" Very High T5 4 Pin
GPH212T5L 8.346" Negligible T5 Min. Bipin
GPH212T5VH/4 8.346" Very High T5 Min. Bipin
GPH287T5L 11.300" Negligible T5 Min. Bipin
GPH287T5U4 11.300" Negligible T5 Four Pin
GPH287T5VH/4 11.300" Very High T5 Four Pin
GPH357T5L/4 14.055" Negligible T5 Four Pin
GPH357T5VH/4 14.055" Very High T5 Four Pin
GPH436T5L 17.165" Negligible T5 Mini Bipin
GPH436T5L/4 17.165" Negligible T5FourPin
GPH436T5VH/4 17.165" Very High T5 Four Pin
GPH783T5L 31.220" Negligible T5 Mini Bipin
GPH851T6L/HOA/4C 33.875" Negligible 19mm-Four Pin
GPH851T6VH/HOA/4C 33.875" Very High 19mm-Four Pin


Amalgam Lamps

Amalgam lamps that deliver up to 3 times the UVC output of standard low pressure UVC lamps, and are designed to operate efficiently at higher operating temperatures than standard and (HO) lamps. They are a cost effective alternative to medium pressure lamps.
Key Features include:

Increased UV dosage without increasing size

Greater efficiency; fewer lamps

Greater stability of UVC output over varying temperatures


Lamp Type Lamp
Wattage
Lamp Current
Amps
Lamp Voltage
@ 50/ 60Hz
UV
Output
UVC
Watts
UV Output @ 1m
(mWatts/cm2)
Rated Life
Hours
Lamp Maintenance
@9000/hrs
GIA1554T5LCA/4C 200 1.4A 140 62.0 475 9000 65%
GIA1554T6LCA/4C 230 2.0A 115 75.0 575 9000 75%
GIA1554T6LCA/HO/4C 270 2.0A 135 85.0 650 9000 70%
GIA1575T11LCA 270 3.8A 69 92.0 700 9000 75%
GIA1575T11LCA/HO 320 3.8A 85 110.0 850 9000 70%

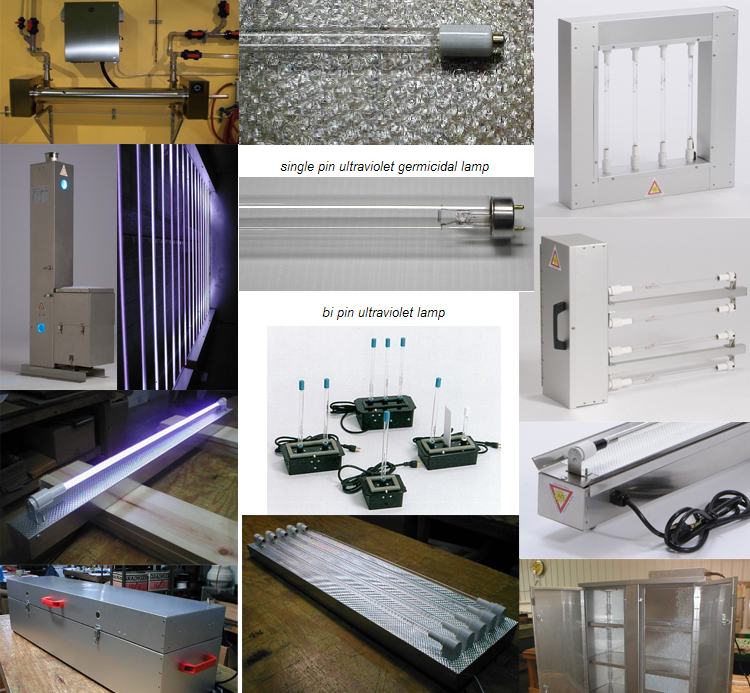

Fuller uv lamp S12T6L,S12T6VH,S24T6L,S24T6VH,G37T6VH,G4511
