UV lamp,Amalgam Lamps GPHHA1554T6L,GPHA1554T6L,GPHVA1554T6L,GPHHVA1554T6L Name©U Amalgam Lamps
Model No.©U GPHHA1554T6L,GPHA1554T6L,GPHVA1554T6L,GPHHVA1554T6L
GIA1554T5LCA/4C,GIA1554T6LCA/4C,GIA1554T6LCA/HO/4C,GIA1200T8LCA,
GIA1500T8LCA,GIA1500T10LCA,GIA1575T11LCA,GIA1575T11LCA/HO
Brand Name©U TROJAN ATLANTIC Light Sources ETC
Country of Origin©U China



Amalgam Lamps

LSI amalgam lamps are designed to operate with a pre-heat ballast unless otherwise noted.
Lamp data is based on measurements performed under laboratory conditions in air at room ambient. Measurements were performed on a high-frequency, current limited electronic ballast and represent average values.

Horizontal Application
  Tube Diameter BF-BF Lenght Arc Length Power Current Voltage UV Output at 254 nm Rated Life
mm mm mm W A V ¦ÌW/cm2 W Hours
GPHA357T5L
 15 357 278 42 1.2 36 110 11 16,000
GPHA843T5L
 15 843 764 105 1.2 88 320 35 16,000
GPHA1000T5L
 15 1,000 921 127 1.2 107 370 42 16,000
GPHA1554T5L
 15 1.554 1,475 190 1.2 164 500 68 16,000
GPHA357T6L
 19 357 278 57 1.8 32 130 13 16,000
GPHA843T6L
 19 843 764 127 1.8 71 400 43 16,000
GPHA1000T6L
 19 1,000 921 150 1.8 84 460 52 16,000
GPHA1554T6L
 19 1.554 1,475 240 1.8 134 630 87 16,000
GPHHA357T6L
 19 357 278 65 2.1 31 140 14 16,000
GPHHA843T6L
 19 843 764 172 2.1 82 490 54 16,000
GPHHA1000T6L
 19 1,000 921 207 2.1 99 570 65 16,000
GPHHA1554T6L
 19 1,554 1,475 320 2.1 154 750 105 16,000

Universal Application

  Tube Diameter BF-BF Lenght Arc Length Power Current Voltage UV Output at 254 nm Rated Life
mm mm mm W A V ¦ÌW/cm2 W Hours
GPHVA357T5L
15 357 278 42 1.2 36 115 11 16,000
GPHVA843T5L
 15 843 764 105 1.2 88 320 35 16,000
GPHVA1000T5L
 15 1,000 921 127 1.2 107 370 42 16,000
GPHVA1554T5L
 15 1.554 1,475 190 1.2 164 500 68 16,000
GPHVA357T6L
 19 357 278 57 1.8 32 130 13 16,000
GPHVA843T6L
 19 843 764 127 1.8 71 400 43 16,000
GPHVA1000T6L
 19 1,000 921 150 1.8 84 460 52 16,000
19 1.554 1,475 240 1.8 134 630 87 16,000
GPHHVA1554T6L/4P
 19 1,554 1,475 320 2.1 154 750 105 16,000
GPHHA1554T10L
 32 1,554 1,435 471 5 95 1160 157 16,000

A longlife Amalgam lamp is an extremely long life, high power, low pressure lamp. These lamps achieve up to ten times the UV power density of classical mercury low pressure lamps and can be used even at higher ambient temperatures of up to 90¡ãC. Moreover, they are insensitive to temperature fluctuations.

Longlife Coating
Their unique coating ensures that they do not suffer the unwanted transmission loss of quartz glass associated with conventional UV lamps. The result is a virtually constant disinfection action over the total operating life of the lamp. And up to 90 percent of the UVC output power is delivered for up to 16,0000 operating hours.

Great potential for savings
in number of lamps, system components, energy consumption and servicing intervals, thanks to their high power and long life. Amalgam lamps represent an economical alternative to medium pressure lamps on account of their high efficiency, long operating life and low operating costs. They save energy and generate very little heat. Our flyer gives a comparison of the economical efficiency of Amalgam lamps (PDF 0,4 MB).

Ozone generating lamps
When synthetic quartz is used as lamp material, additional VUV radiation is emitted at a wavelength of 185 nm. By choosing the optimal combination of quartz material and lamp technology the UV output at 185 nm can be increased by a factor of 5 from that of a standard low pressure lamp.

The two lamp types at a glance:

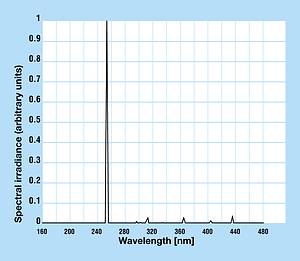

amalgam lamps with ten-times UV output, higher operating temperature up to 90¡ãC, spectrum: line at 254 nm, ozone-free

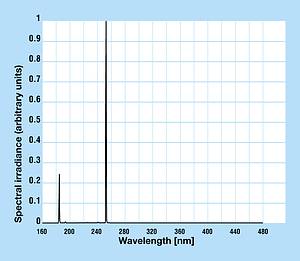

amalgam lamps with synthetic quartz tube, spectrum: lines at 254 nm and 185 nm, ozone-generating

  Ozone-free Ozone-generating
Spectrum: wavelength 254 nm 185 nm, 254 nm
Illuminated length 25 - 150 cm 25 - 150 cm
Electrical power 50 - 800 W 50 - 800 W
Typical UV efficiency at 254 nm 35 % 35 %
Typical efficiency at 185 nm,
natural quartz glass
-		 approx. 6 %

Typical efficiency at 185 nm,
synthetic quartz glass

 - approx. 9 %
Specific UVC flux 0,5 - 2 W/cm 0,5 - 2 W/cm
Ambient application temperature max. 90 ¡ãC max. 90 ¡ãC
Operating life *
 up to 16,000 h with a maximum fall-off of 10 - 20 % UVC intensity
 up to 16,000 h with a maximum fall-off of 10 - 20 % UVC intensity
UVS Ultra Violet Lamps
4
UVS Legend: - e.g. G36T15N-C
G = Germicidal, 36 = Nominal Overall Length of Lamp in Inches, T = Tubular, 15 = Diameter of Fused Quartz Tubing in mm,
N = Non-ozone Producing, Single Pin (unless otherwise specified), C=Internal Coating
H = Ozone Producing, PN2 = Standard Miniature Bi-pins Each End, PN4 = 4-Pins One End (Teflon Coated Wire)
A90 or A150 = Amalgam, C = Internal Coating, U = U-Shaped Lamp, DU = Double U-Shaped Lamp
Standard Mercury Vapour (500C) A90 Amalgam (900C)
BestUV Lamp Codes UVS Codes  Base Face Length     mm Lamp Diameter mm Lamp Wattage Lamp Current mA/Amps
Instant Start - Standard Mercury Vapour
G36T15N-C 843 15 42 430
G36T15H-C 843 15 42 430
G48T15N-C 1148 15 55 440
G48T15H-C 1148 15 55 440
G60T15N-C 1554 15 75 465
G60T15H-C 1554 15 75 465
Instant Start - A90 Amalgam Lamps (900C) ¡¡ ¡¡ ¡¡
G36T15N-A90-C 843 15 90 800 - 1200
G36T15H-A90-C 843 15 90 800 - 1200
G48T15N-A90-C 1148 15 120 800 - 1200
G48T15H-A90-C 1148 15 120 800 - 1200
G60T15N-A90-C 1554 15 165 800 - 1200
G60T15H-A90-C 1554 15 165 800 - 1200
G843T19N-A90-C 843 19 ~172 2.1
G843T19H-A90-C 843 19 ~172 2.1
G1554T19N-A90-C 1554 19 ~220 2.1
G1554T19H-A90-C 1554 19 ~200 2.1
G843T28N-A90-C 843 28 ~230 3.5
G843T28H-A90-C 843 28 ~230 3.5
G1554T28N-A90-C 1554 28 ~300 3.8
G1554T28H-A90-C 1554 28 ~300 3.8
Replacement Wedeco TAK 55 Amalgam Lamp 1554 28 ~300 3.8
Replacement Trojan UV 3000 Plus Amalgam Lamp 1564 19 ~256 2.0
Instant Start - A150 Amalgam Lamps (1500C) ¡¡ ¡¡ ¡¡ amps
G843T15N-A150-C 843 15 ~105 1.5
G843T15H-A150-C 843 15 ~105 1.5
G1554T15N-A150-C 1554 15 ~190 1.5
G1554T15H-A150-C 1554 15 ~190 1.5
G843T19N-A150-C 843 19 ~172 2.8
G843T19H-A150-C 843 19 ~172 2.8
G1554T19N-A150-C 1554 19 ~320 2.8
G1554T19H-A150-C 1554 19 ~320 2.8
G843T28N-A150-C 843 28 ~230 4
G843T28H-A150-C 843 28 ~230 4
G1554T28N-A150-C 1554 28 ~300 5
G1554T28H-A150-C 1554 28 ~300 5
Instant Start U (H) -Shaped - Standard Mercury Vapour ¡¡ ¡¡ ¡¡ ¡¡
G36T15NU-C 438 15 42 430
G36T15HU-C 438 15 42 430
G48T15NU-C 591 15 55 430
G48T15HU-C 591 15 55 430
G60T15NU-C 790 15 75 465
G60T15HU-C 790 15 75 465
G72T15NU-C 850 15 80 465
G72T15HU-C 850 15 80 465
G100T15NU-C 1320 15 110 465
G100T15HU-C 1320 15 110 465
Instant Start U (H) -Shaped A90 Amalgam Lamps ¡¡ ¡¡ ¡¡ ¡¡
G36T15NU-A90-C 438 15 90 800 - 1200
G36T15HU-A90-C 438 15 90 800 - 1200
G48T15NU-A90-C 591 15 120 800 - 1200
G48T15HU-A90-C 591 15 120 800 - 1200
G60T15NU-A90-C 790 15 165 800 - 1200
G60T15HU-A90-C 790 15 165 800 - 1200
G72T15NU-A90-C 850 15 185 800 - 1200
G72T15HU-A90-C 850 15 185 800 - 1200
G100T15NU-A90-C 1320 15 240 800 - 1200
G100T15HU-A90-C 1320 15 240 800 - 1200
Pre-Heat - Start Standard Mercury Vapour ¡¡ ¡¡ ¡¡
G4T15N-PN2-C 134.5 15 4 170
G4T15H-PN2-C 134.5 15 4 170
G4T15N-PN4-C 134.5 15 4 170
G4T15H-PN4-C 134.5 15 170
G6T15N-PN2-C 210.5 15 6 170
G6T15H-PN2-C 210.5 15 6 170
G6T15N-PN4-C 210.5 15 6 170
G6T15H-PN4-C 210.5 15 6 170
G8T15N-PN2-C 287 15 8 170
G8T15H-PN2-C 287 15 8 170
G8T15N-PN4-C 287 15 8 170
G8T15H-PN4-C 287 15 8 170
G36T15N-PN2-C 843 15 42 430
G36T15H-PN2-C 843 15 42 430
G36T15N-PN4-C 843 15 42 430
G36T15H-PN4-C 843 15 42 430
G48T15N-PN2-C 1148 15 55 440
G48T15H-PN2-C 1148 15 55 440
G48T15N-PN4-C 1148 15 55 440
G48T15H-PN4-C 1148 15 55 440
G60T15N-PN2-C 1554 15 75 465
G60T15H-PN2-C 1554 15 75 465
G60T15N-PN4-C 1554 15 75 465
G60T15H-PN4-C 1554 15 75 465


  Operating Conditions Tube Diameter BF-BF Lenght Arc Length Lamp Power Lamp Current Lamp Voltage UV Irradiance UV Power Rated Life Ballast Models Ballast Power Ballast Input Current
mm mm mm W A V ¦ÌW/cm2 W Hours   W A
GPHA357T5L Horizontal 15 357 278 42 1.2 36 110 11 13,000 E230.104 50 0.25
GPHVA357T5L Universal 15 357 278
Specifications: Amalgam Lamps
Operating Conditions Tube Diameter BF-BF Lenght Arc Length Lamp Power Lamp Current Lamp Voltage UV Irradiance UV Power Rated Life Ballast Models Ballast Power Ballast Input Current
mm mm mm W A V ¦ÌW/cm2 W Hours W A
GPHA357T5L Horizontal 15 357 278 42 1.2 36 110 11 13,000 E230.104 50 0.25
GPHVA357T5L Universal 15 357 278 42 1.2 36 115 11 13,000 E230.104 50 0.25

Operating Conditions Tube Diameter BF-BF Lenght Arc Length Lamp Power Lamp Current Lamp Voltage UV Irradiance UV Power Rated Life Ballast Models Ballast Power Ballast Input Current
mm mm mm W A V ¦ÌW/cm2 W Hours W A
GPHA843T5L Horizontal 15 843 764 105 1.2 88 320 35 13,000 E230.101 118 0.53
GPHVA843T5L Horizontal 15 843 764 105 1.2 88 320 35 13,000 E230.101 118 0.53
GPHA1000T5L Horizontal 15 1,000 921 127 1.2 107 370 42 13,000 E230.101 140 0.62
GPHVA1000T5L Universal 15 1,000 921 127 1.2 107 370 42 13,000 E230.101 140 0.62
GPHA1554T5L Horizontal 15 1.554 1,475 190 1.2 164 500 68 13,000 E230.101 216 0.95
GPHVA1554T5L Universal 15 1.554 1,475 190 1.2 164 500 68 13,000 E230.101 216 0.95
GPHA357T6L Horizontal 19 357 278 57 1.8 32 130 13 13,000 E230.107 68 0.32
GPHVA357T6L Universal 19 357 278 57 1.8 32 130 13 13,000 E230.107 68 0.32
GPHA843T6L Horizontal 19 843 764 127 1.8 71 400 43 13,000 E230.108 140 0.62
GPHVA843T6L Universal 19 843 764 127 1.8 71 400 43 13,000 E230.108 140 0.62
GPHA1000T6L Horizontal 19 1,000 921 150 1.8 84 460 52 13,000 E230.108 164 0.74
GPHVA1000T6L Universal 19 1,000 921 150 1.8 84 460 52 13,000 E230.108 164 0.74
GPHA1554T6L Horizontal 19 1.554 1,475 240 1.8 134 600 84 13,000 E230.102 261 1.14
GPHVA1554T6L Universal 19 1.554 1,475 240 1.8 134 600 84 13,000 E230.102 261 1.14
GPHHA357T6L Horizontal 19 357 278 65 2.1 31 140 14 13,000 E230.110 74 0.35
GPHHA843T6L Horizontal 19 843 764 172 2.1 82 490 54 13,000 E230.110 180 0.79
GPHHA1000T6L Horizontal 19 1,000 921 207 2.1 99 570 65 13,000 E230.110 218 0.96
GPHHA1554T6L Horizontal 19 1,554 1,435 320 2.1 154 750 105 13,000 E230.103 340 1.52

TUV 270W XPT
TUV 260W XPT
TUV 240W XPT
Advantages: Detailed Product Description


1.Type: Amalgam Lamp;
2.Model No.:

3.Length from base face to base face :1554mm;

4.Power:240W;

5.Quartz Diameter:T6 (19mm);

6.Base: Single-end 4-pinceramic base;

7.Life:More than 10,000h;

8.OzoneType: Ozonefree;

9.UVOutput: 500uW/cm2;





Customor OEM manufacturing:

1)Germicidal Type: Ozone type or Ozone freetype;

2)Quartz diameter: from T5 to T8 (from 15mm-26mm);

3)Length from base face to base face: from 300mm to 1800;

4)Base material : Ceramic base;

5)Pin type: Single-pin type; Bipin;Single-end 4-pin type;

6)Power range: can reach 320W;


ADVANTAGES:

1.High Output : Power range can reach 320W;

2.High Efficiency: UV Output can reach 500uW/cm2;

3.Long Life: can reach 10,000 hours;

4.More benefit: can saving your cost.
