222nm?wall-mounted?/handheld?UV?lamp?set

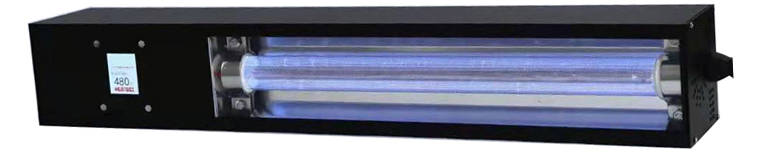

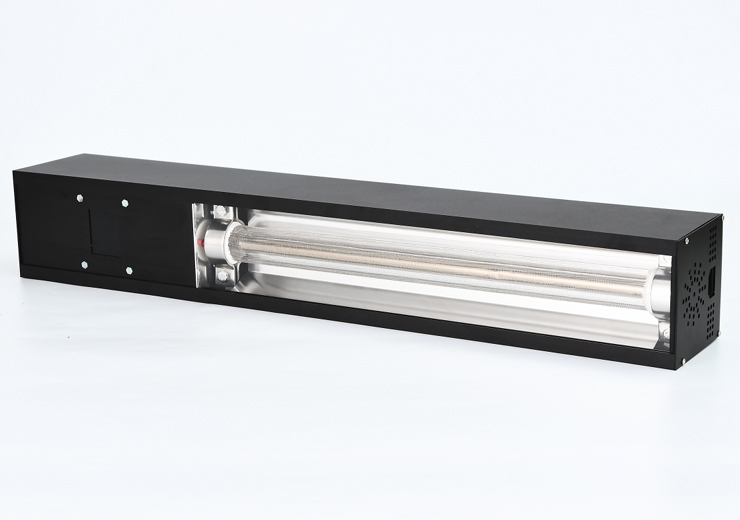

222nm wall-mounted/handheld UV lamp set 100W, 24V power supply. Life time: 4000h.

Our equipment is equipped with a filter, except for the 222nm wavelength, no other wavelengths are transmitted.

222nm?wall-mounted?/handheld?UV?lamp?set

222nm wall-mounted/handheld UV lamp set

Electrical appliances

PowerW

100W

Input voltage

24V

Power factor

>0.7-0.8

Ballast

RF power supply

Insulation class

Class

UV LAMP

Lamp type

222nm Excimer tube

Lamp holder type

Ceramics

Lamp sizeաU

400mm2.5mm*40mm

Ozone

No ozone, release content <0.24g/kWh

Optics

Color temperatureK

Ultraviolet rays

Wavelengthnm

222nm

Ultraviolet radiation illuminance
W/cm21m

180W/cm2

Beam angle

180

Structure

Shell material

Aluminum alloy

Protection level

IP20

Other

Remote control function

5 time options: 1 hour, 2 hours, 4 hours, 8 hours, constant light

Lamp Warranty

2 years

Ambient temperature

-10-+45

Storage temperature

-20-+80
