Metal Halide UV lamp for Reprographics

Explain/Picture

Metal Halide UV lamp for Reprographics

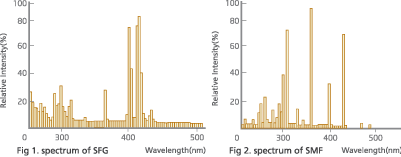

It consists of general metal halide lamp and ozone-free metal halide lamp.It is put chemicals which are series of Fel2 and they can make the emission the wavelength of except mercury from the tube of quartz which has diameter of 25-30mm.It also radiates light continuously from the part at 320-420nm.It can maximize the utility factor of UV than mercury lamp so it is good for any coating with colored or black colors and things which have thick coating.
Metal Halide UV lamp for Reprographics 5000W 7000W 4000W
Metal Halide UV lamp for Reprographics 5000W 7000W 4000W
Metal Halide UV lamp for Reprographics 5000W 7000W 4000W

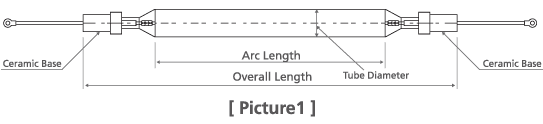

Drawing/Specifications

Model No.
Lamp Capacity
(W)
Lamp Voltage
(V)
Lamp Current
(A)
Overall Length
(mm)
Arc Length
(mm)
Tube Diameter
(mm)
SFG(SPG)-5000
5000
360
15
291
208
32
SMF(SMX)-7000
7000
550
15
388
280
32
SFG(SPG)-4000
4000
290
15
250
144
32
SMF(FGQ)-5000
5000
360
15
291
208
32
SFG(MXA)-7000
7000
550
15
388
280
32
